Villeroy & Boch Villeroy And Boch Viconnect Pro Toilet Frame With Chrome Flush Plate + Subway 2.0 Wall Hung Toilet

Villeroy and Boch Viconnect Pro Toilet Frame with Chrome Flush Plate + Subway 2.0 Wall Hung Toilet

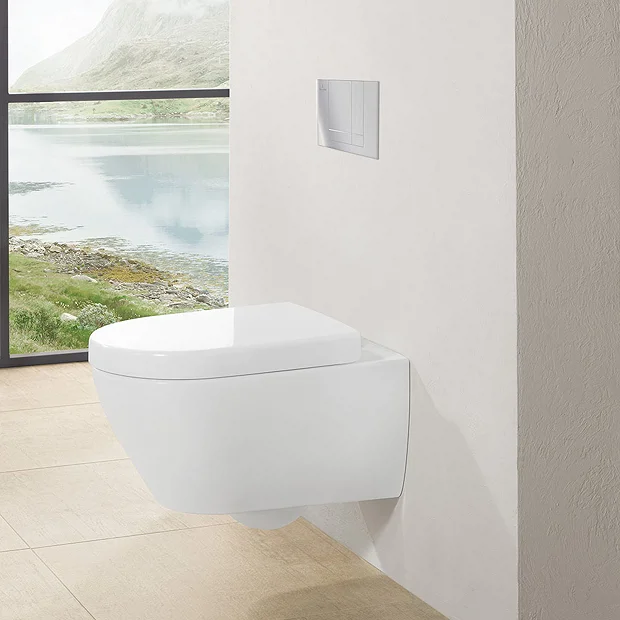

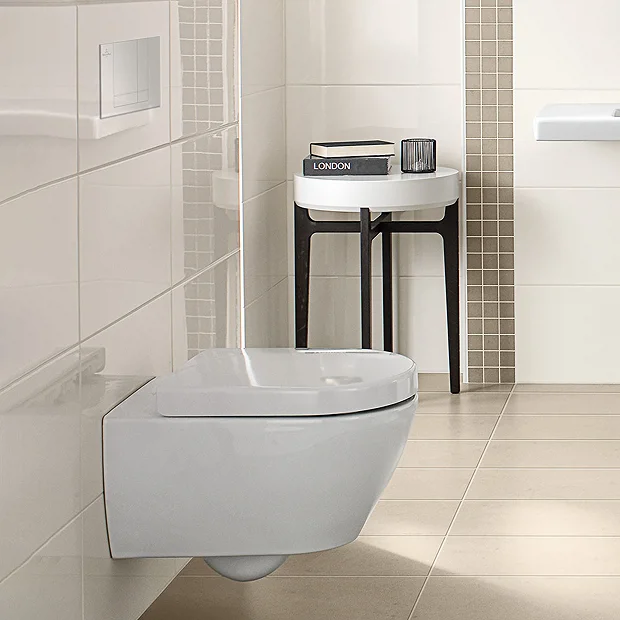

A stylish accompaniment to a modern, minimalist bathroom, the Villeroy and Boch Subway 2.0 Toilet and Concealed WC Cistern with Wall Hung Frame consists of a wall hung pan, soft close seat, wall hung WC frame with cistern and chrome flush plate. Made of durable, sanitary ceramic the elegant toilet is easy to maintain and will endure years of daily use.

The Viconnect PRO 1.12m Frame features a self supporting powder-coated steel frame can be fixed to most types of wall and has adjustable feet for uneven floors. The concealed cistern is insulated to prevent condensation, reducing the need for maintenance. As standard, the dual flush cistern provides a six or three litre option, but this can be adjusted to use even less water if desired.

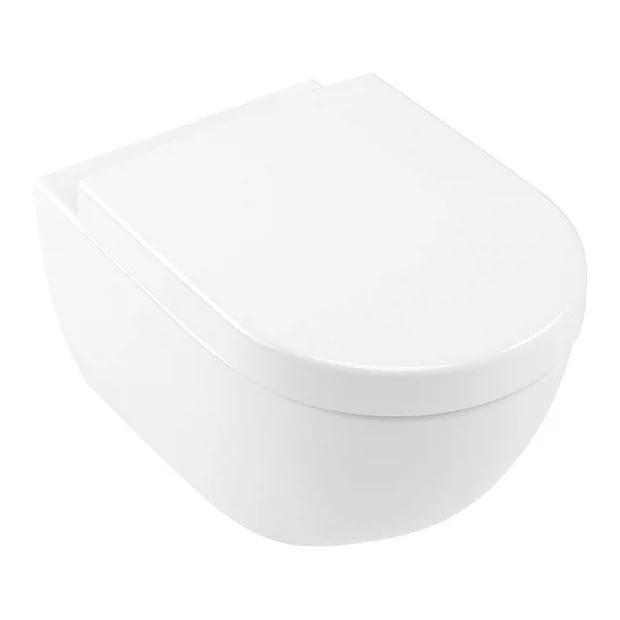

Wall Hung Pan Details

• Finish: White Alpin
• Height: 410mm
• Width: 370mm
• Depth: 560mm
• Material: Ceramic
• DirectFlush rimless bowl
• Wall hung pan
• Horizontal outlet

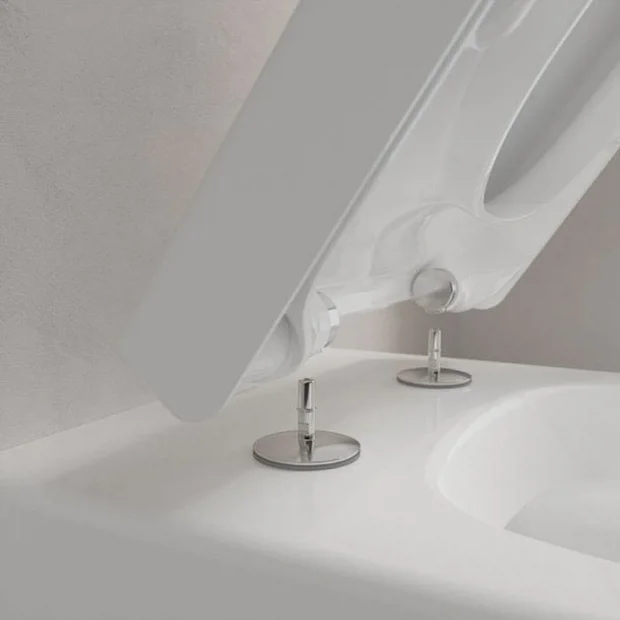

• Soft close seat with quick release
• 5 Year Guarantee

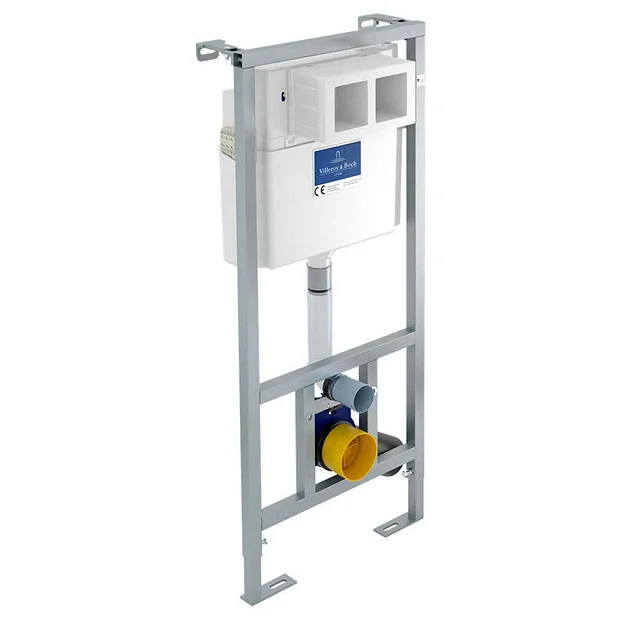

Wall Hung Frame Details

• Height: 1120mm
• Width: 525mm
• Depth: 135mm
• For wall hung pans
• For covering with plasterboard, installation on a solid brick wall, in dry-wall constructions etc
• Easy connection to flush plate via flexible cables with bayonet joint
• Adjustment range of feet from unfinished floor level to upper edge of finished floor level: 0-200mm
• Depth adjustment front edge of element: 135-205 mm (when actuated from above 155-205 mm)
• Self-supporting powder-coated steel frame
• Fully pre-assembled
• Front operated
• Concealed cistern insulated against condensation water
• With dual flush (7.5-4.5 l / 4-2 l), maximal flush quantity 4/7,5 l, factory setting 6/3 l
• Filling valve Noise Class I
• 2-part angle valve connection set R1/2
• Drain bend clamp
• 4 adjustment settings
• PE toilet connecting bend DN 90 (Ø 90) with reducing sleeve DN 90 (Ø 90) / DN 100 (Ø 110) with protection plugs
• Complete WC connection set DN 90 (Ø 90) / 180 mm
• Protection box for access opening can be cut to size
• Flexible hose for filling valve
• Adjustable flush flow control for adaptation to rimless toilet bowls
• Certification marks for concealed cistern: Noise Class I
• EN 14055EN 14055

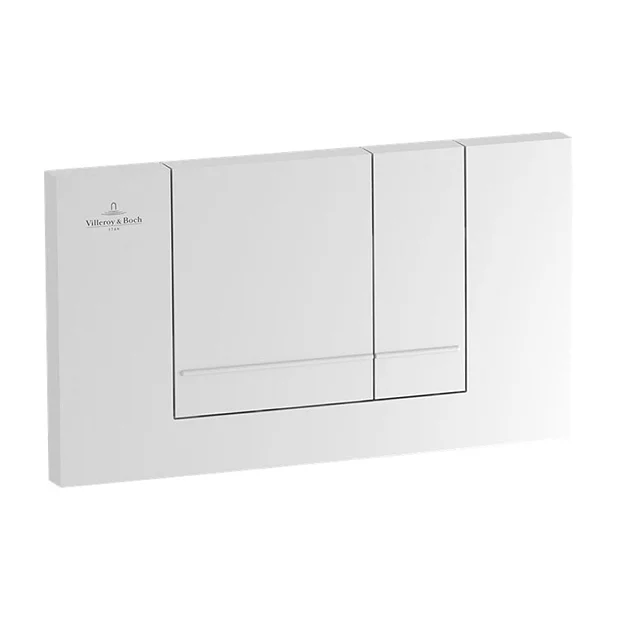

• Chrome dual flush plate
• 10 Year Guarantee

All measurements are approximate

Images are for illustrative purposes only
