Victorian Plumbing Winchester Traditional Complete Roll Top Bathroom Package (1710mm)

Winchester Complete Roll Top Bathroom Package (1710mm) – 1TH Basin

The Winchester Traditional complete roll top bathroom package (1710mm) includes everything you need for creating a stylish bathroom in your home. Evoking the classical style of a bygone era, yet manufactured to today’s high exacting standards, the high quality Winchester bathroom suite is perfect for providing a period look in any home. Includes a luxury traditional free standing roll top slipper bath and Traditional Savoy Heated Towel Rail.

Toilet Details

• Width: 480mm
• Depth: 760mm
• Height: 860mm
• Toilet seat height: 390mm
• Traditional design
• White Gloss finish
• Complete with cistern fittings
• Toilet pan supplied with Toilet Seat

Basin Details

• Width: 580mm
• Depth: 470mm
• Height: 835mm
• Height of back detail: 80mm
• Traditional design
• Tap Holes: 1
• White Gloss Finish
• Includes full pedestal

Slipper Bath inc Chrome Ball & Claw Feet Details

• Length: 1710mm
• Width: 720mm
• Height: 790/650mm
• Bath Type: Slipper roll top bath
• Foot Style: Chrome Ball and Claw
• Material: Twin Skinned Acrylic / Chrome Plated Alloy
• Tap Holes: 0
• Colour/Finish: White Gloss / Polished Chrome
• All measurements are approximate
• All Baths have adjustable legs (so you can even level your bath on an uneven floor)
• The baths are made from two 3.5mm sheets of acrylic with a fiberglass-resin filler layer which reinforces and insulates the bath.
• There will be an element of compression in the thickness due to the bath forming process but the advised overall thickness would be around 11mm.

• Guarantee: Bath (5 Year) Metal claw feet (1 Year)


Luxury Exposed Chrome Bath Retainer Waste

• Designed to be used on free standing baths and be exposed.
• High Quality Design
• Manufactured to the Highest Standards
• Chrome Finish with Brass Internals
• Suitable for baths up to 20mm thick.
• Guarantee: 5 Year

Toilet Seat Details

• Dimensions: 370mm x 420mm
• Hinge adjustment: 105mm-180mm
• Material: MDF Construction
• Colour: Beech
• None split or leak
• Chrome plated hinges

Luxury Ceramic Cistern Lever

• The ceramic handle lends itself to any traditional/period bathrooms.
• Chrome Finish
• Brass Internals
• Quality Heavy Design
• Ceramic white lever handle
• Suitable for any standard UK lever cistern toilet
• Guarantee: 5 Year

Regent Traditional Chrome Freestanding Bath Shower Mixer Tap

• Solid brass bath shower mixer tap with polished chrome finish
• Traditional, victorian-style design
• Two crosshead taps with single fixed spout
• Separate hot and cold water controls
• Traditional shower head and hose; mounted on tap
• Chrome diverter to switch water flow between bath spout and shower head
• Tap suitable for high and low pressure systems (min 0.5 bar)
• Supplied with Fixing kit
• Manufactured to the Highest Standards
• Smooth Operation with Quality Components
• Height (without taps) 660mm, Diameter of pipe 40mm
• Designed to allow you to fit a Bath Shower Mixer, or Bath Filler over the edge of a Freestanding Bath which has no tap holes.
• 1/4 turn ceramic disc cartridge
• Hot tap turns clockwise to open / Cold tap turns anti-clockwise to open

• Guarantee: 5 Year

Regent Traditional Mono Basin Mixer with Pop-up Waste

• High quality design and build
• Material: Brass body
• Colour/Finish: Chrome finish
• Product Type: Traditional
• Easy installation
• Working Pressure: 0.5 Bar – 5 Bar
• Supplied with pop up waste
• 1/4 turn ceramic disc cartridge
• Hot tap turns clockwise to open / Cold tap turns anti-clockwise to open

• Guarantee: 5 Years

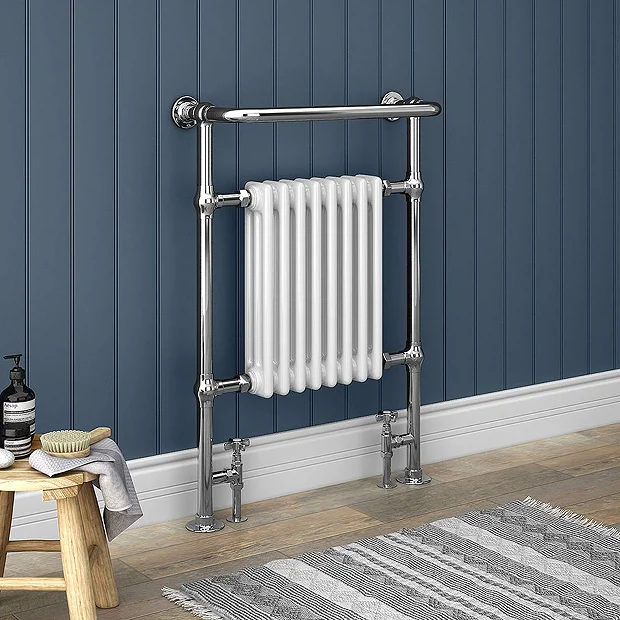

Traditional Savoy Heated Towel Rail

• Height: 965mm
• Width: 673mm
• Pipe Centres (with radiator Valves): 420mm
• Tube Diameter: 32mm
• Floor to Centre of Tapping 105mm
• Wall to Centre of Tapping 100mm
• Output at 60ºC 3520 BTU’s, 1026 watts
• Quality Steel tubing incorporating a period style column radiator
• Traditional Design
• Manufactured to the Highest Standards
• Maximum Projection From Wall 230mm
• Comes Complete with fixing screws
• Guarantee: 5 Year

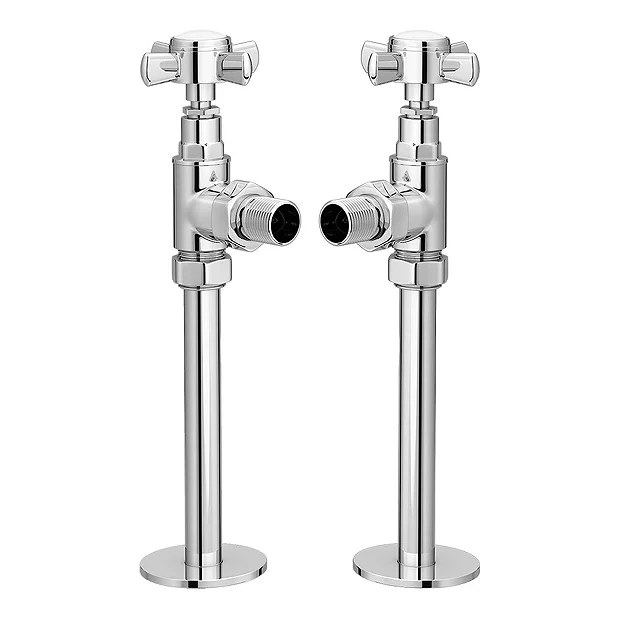

Pair of Traditional Chrome Plated Angled Radiator Valves with Pipes & Concealing Plates

• Style: Traditional
• Colour/Finish: Polished Chrome
• Material: Brass Internals
• White ceramic cap in centre of cross head handle
• Smooth Operation with Quality Components
• Comes as a Pair
• Angled Valve
• Supplied with 15mm decorative pipes and concealing plates
• Guarantee: 5 Year

Please note – Bath supplied without tap holes

All measurements are approximate

Images are for illustrative purposes only

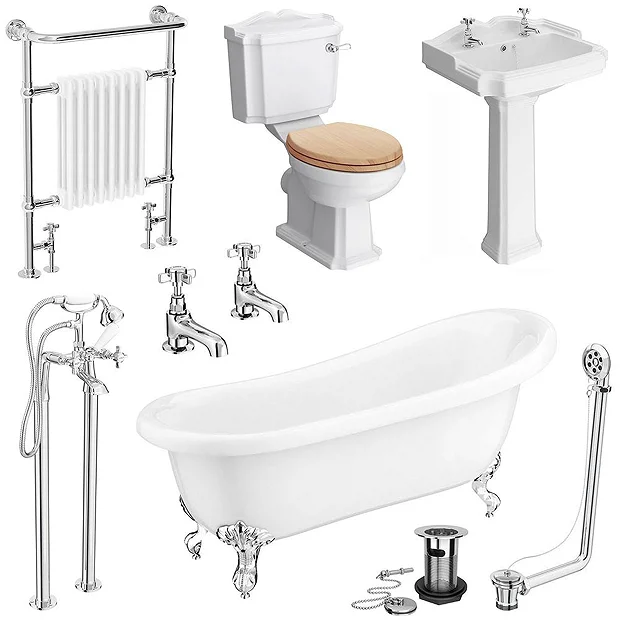

Package Contents

(1) Astoria 1710 x 720mm Roll Top Slipper Bath with Chrome Ball & Claw Feet
(1) Legend 1 Tap Hole Basin
(1) Legend Cistern
(1) Legend Close Coupled Toilet
(1) Legend Full Pedestal
(1) Beech Wood Toilet Seat
(1) Luxury Exposed Chrome Bath Retainer Waste
(1) Luxury Ceramic Cistern Lever
(1) Regent Traditional Freestanding Bath Shower Mixer with Standpipes – Chrome
(1) Regent Traditional Mono Basin Mixer with Pop-up Waste – Chrome
(1) Pair of Traditional Chrome Plated Angled Radiator Valves with Pipes & Concealing Plates
(1) Traditional Savoy Heated Towel Rail – Chrome
