Victorian Plumbing Casca Wall Hung Bathroom Suite

Casca Wall Hung Bathroom Suite

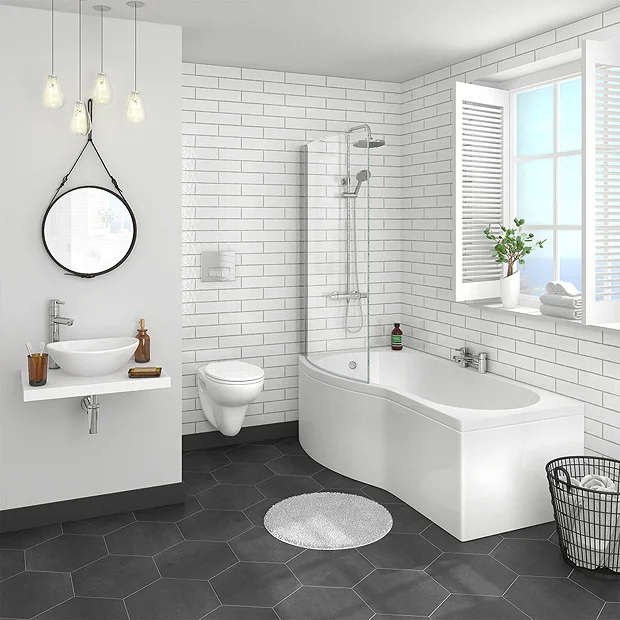

The Casca wall hung bathroom suite brings great style to any modern bathroom setting. Without any compromise on style and good looks the wall hung option provides a bathroom design solution delivering a completely clear and open floor area.

Features a 1700mm B-Shaped Shower Bath & Curved Screen, manufactured from high quality gloss acrylic. The curved screens are designed to complement modern curved bath designs, and provide the perfect solution where space is not available for a separate enclosure.

The stylish wall hung counter top shelf with Casca 410mm wide oval shaped counter top basin is perfect for creating a boutique feel in your bathroom. Inspired by organic shapes the Casca basin comes with no tap holes and is to be used alongside a counter or wall mounted outlet. Shelf is supplied undrilled to allow flexible positioning for your basin and tap.

Please note, optional bath end panel (BBTEP) sold separately.

Available in Left or Right hand options.

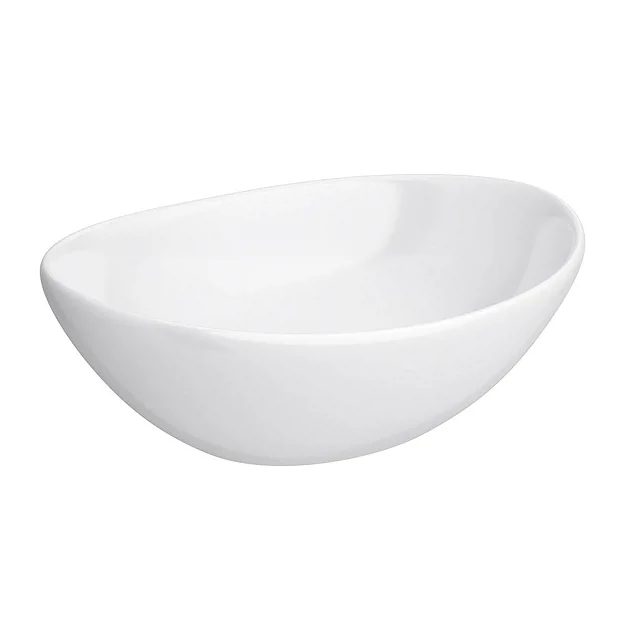

Counter Top Basin Details

• Wide: 400mm
• Depth: 330mm
• Height: 145mm
• Product Type: Counter Top
• Shape: Oval
• Material: Ceramic
• Colour/Finish: White Gloss
• Tap Holes: 0
• No overflow – for use with unslotted basin wastes
• Some small dimensional variation may occur due to manufacturing tolerances.

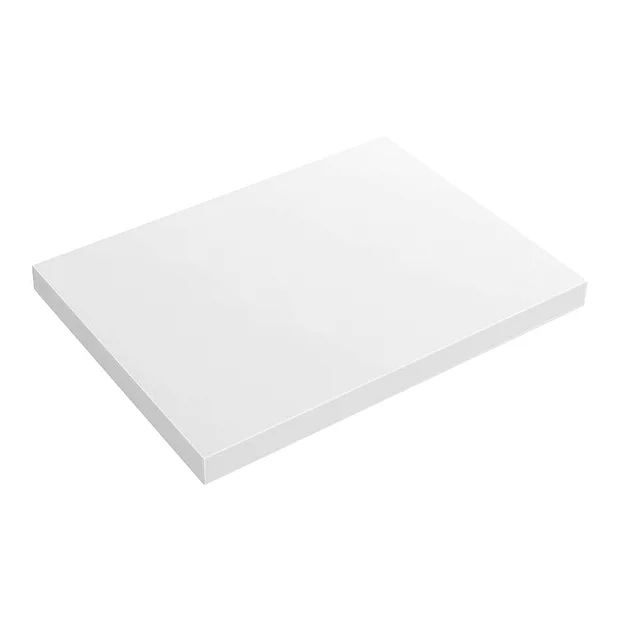

Shelf Details

• Width: 600mm
• Depth: 450mm
• Height: 45mm
• Colour: White
• Type: Wall Hung Countertop Basin Shelf
• Supplied with Concealed Brackets
• Undrilled – to allow flexible positioning for your basin and tap.

Wall Hung Toilet Details

• Dimensions: W355mm x H385mm x D530mm
• Clean elegant contemporary design
• Material: Ceramic
• Colour/Finish: Gloss White
• Type: Wall Hung
• Soft closing toilet seat with adjustable hinges
• Guarantee: 5 Year

Dual Flush Concealed WC Cistern with Wall Hung Frame Details

• Dimensions: W400mm x H1128mm x D112mm

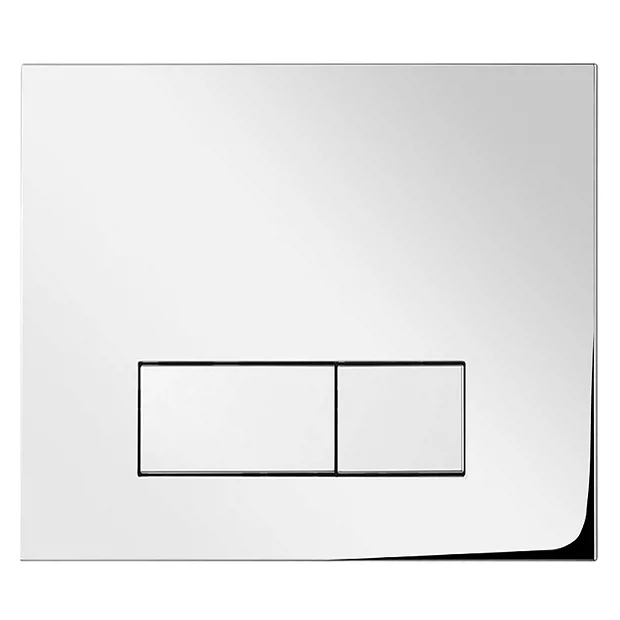

• The new wall frame is supplied with a stylish square chrome dual flush plate cistern.
• Tested to 400kg, the frame is compatible with all of our wall hung pans.
• Galvanized metal box frame
• 3/6 Dual flush, chrome plated buttons on the cistern, stylish, eco-friendly and water saving.
• Not suitable for low pressure systems – less than 1 bar.
• Guarantee: 5 Year

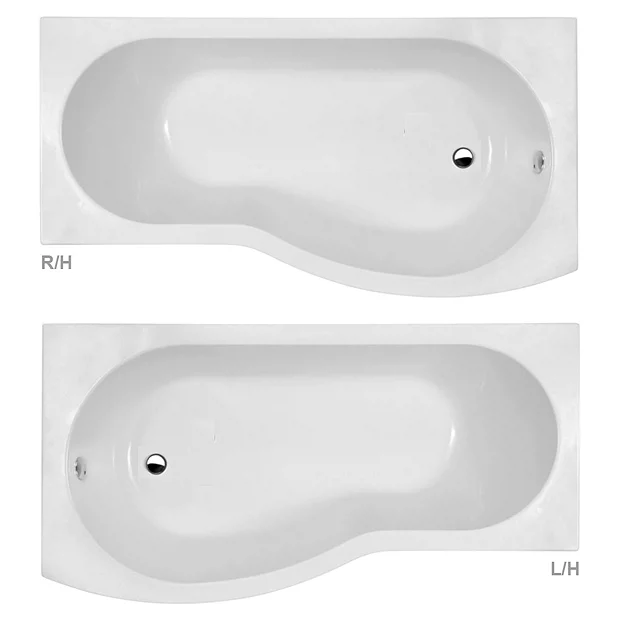

Shower Bath Details

• B-Shaped Shower Bath
• Dimensions: width 1700 x (depth at widest point) 900 / depth 736mm
• Bath Volume: 240 Litres
• Clean elegant contemporary design
• Choice of Right or Left hand bath tube
• High quality build
• Practical design solution
• White Gloss Acrylic
• No tap holes
• White Gloss Acrylic Side Panel Included
• Supplied with Leg Set
• Guarantee: 5 Year

Curved Bath Screen Details

• Height: 1435mm
• Width: 850-870mm
• Manufactured to the Highest Standards
• Polished chrome
• Reversible
• Hinged bath screen
• Metal caps
• 5mm toughened safety glass
• Guarantee: 5 Year

All measurements are approximate

Pictures shown are for illustration purposes only.

Tap holes have to be drilled by customer

Taps, Bath End Panel (BBTEP) and any other ancillary items shown in photograph not included.

Comprises

(1) Nova 600 x 450mm White Wall Hung Slimline Countertop Basin Shelf
(1) Casca Oval Counter Top Basin 0TH – 400 x 330mm
(1) Premier Dual Flush Concealed WC Cistern with Wall Hung Frame – XTY005
(1) Wall Hung Pan – WHP001
(1) Standard Soft Close Toilet Seat – NTS010
(1) 1700mm B-Shaped Shower Bath with Leg Set
(1) B-Shaped Acrylic Bath Front Panel
(1) Curved Bath Screen
