Victorian Plumbing Carlton Traditional Bathroom Suite With Bath Panels (1700 X 700mm)

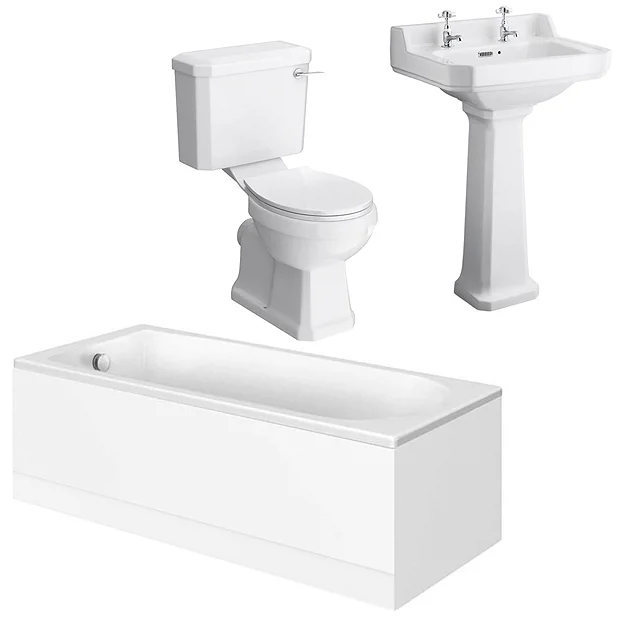

Carlton Traditional Bathroom Suite with Bath Panels (1700 x 700mm)

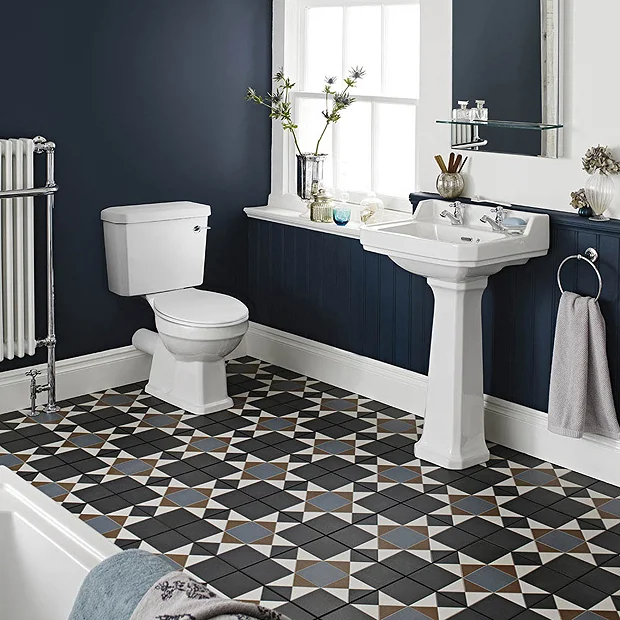

The Carlton traditional bath suite, evoking the classical style of a bygone era, yet manufactured to today’s high exacting standards, the Carlton bathroom suite is perfect for providing a period look in any home. Comprising of a 1700 x 700mm acrylic bath with front and end bath panels, a four piece Carlton pottery set with two tap hole basin, pedestal, toilet cistern and pan, with seat.

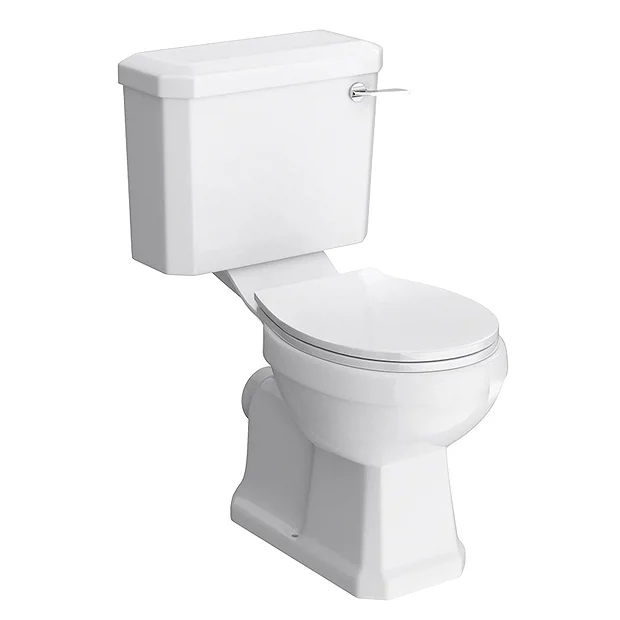

Toilet Details

• Width – 470mm
• Height – 820mm
• Pan Depth – 690mm
• Total Depth with Cistern 720mm

• High quality traditional style design
• Material: Vitreous China
• Gloss white finish
• Complete with cistern fittings
• Flush mechanism is WRAS approved
• Toilet pan supplied with toilet seat
• Installation and maintenance instructions included
• Supplied with chrome finish flush lever
• Water Inlet – Bottom Left

• Guarantee – 5 Year

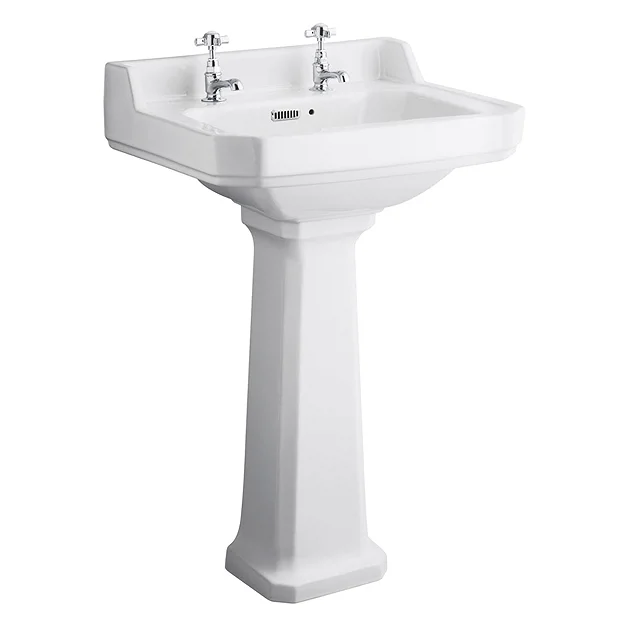

Basin and Pedestal Details

• Width – 560mm
• Depth – 450mm
• Height – 905mm
• High quality traditional style design
• Material: Vitreous China
• Gloss white finish
• 2 Tap Hole
• Includes full pedestal
• Basin has over flow and chain stay hole.

• Guarantee – 5 Year

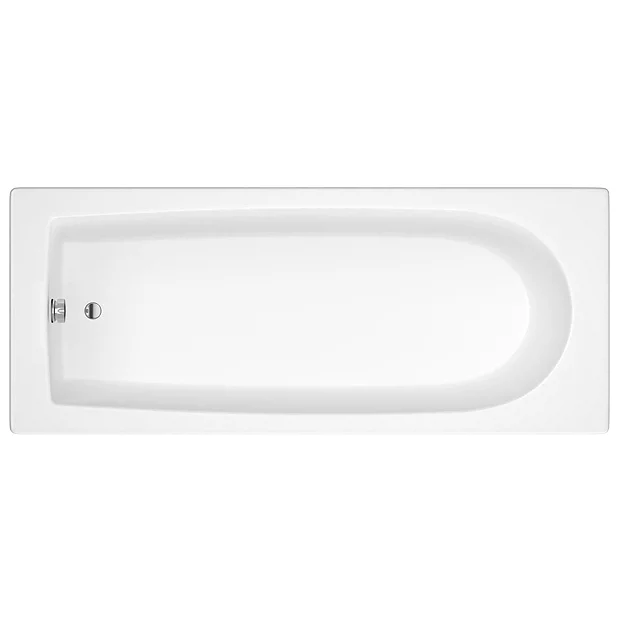

1700 x 700mm Bath with Front + End Panels Details

• Length – 1700mm
• Depth – 700mm
• Clean elegant contemporary design
• Finish/Colour –  White Gloss
• Material – Acrylic

• Supplied with metal Legs
• Fully Encapsulated Base Board
• Bathing luxury and ergonomic design
• Manufactured to the Highest Standards
• Standard Single Ended Acrylic Bath
• Tap mounting holes to be drilled to suit by installer

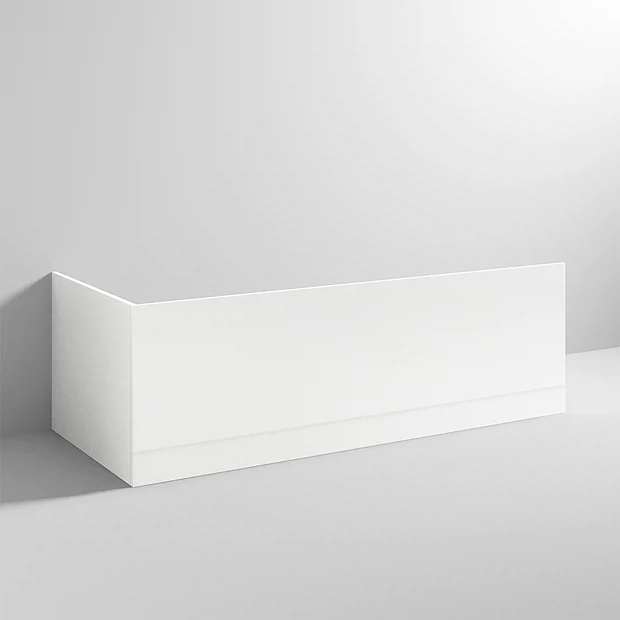

• Panels designed to compliment standard rectangular baths
• Panel height – 510mm
• Bath panel manufactured from 2mm styrene
• Panels can be trimmed using a fine tooth saw or sharp blade, using appropriate safety equipment + care
• Bath tub Guarantee – 5 Year

• Bath panels Guarantee – 2 Year

Tap + Waste not included

All measurements are approximate – Please allow a manufacturing tolerance of +/- 5mm

Pictures shown are for illustration purpose only



Package Contents

(1) Premier Carlton Cistern & Fittings – NCS801
(1) Premier Carlton Close Coupled Pan + Seat – NCS800
(1) Premier Carlton 560mm Medium 2 Tap Hole Basin – NCS804
(1) Premier Carlton Pedestal – NCS803
(1) 1700 x 700 Standard Single Ended Bath with Front + End Panels
