Grohe Solido Euro/Arena Wall Hung Bathroom Suite

Grohe Solido Euro/Arena Wall Hung Bathroom Suite (Wall Hung Rimless Pan, Concealed Cistern, Frame + 600mm Basin)

The Solido Euro wall hung suite is perfect for bringing great style to any modern bathroom setting. Without any compromise on style and good looks the wall hung option provides a bathroom design solution delivering a completely clear and open floor area. The Euro Ceramic range has been specially designed to match up an excellent performance with an attractive price.

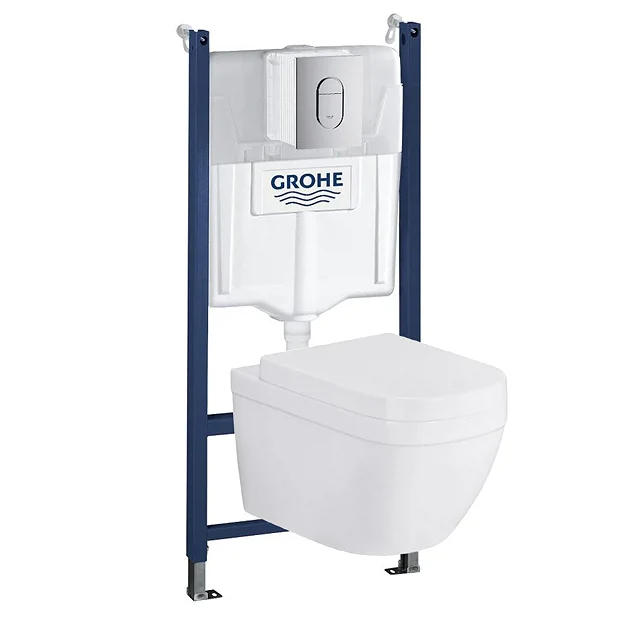

The Solido Euro/Arena WC package consists of a support frame and cistern, dual flush plate, wall hung pan and soft close seat. The steel support frame gives you the freedom to design your ultimate bathroom by providing a secure and quick method of installing WCs. Each frame comes pre-assembled with sanitary ware fixings and is subject to stringent testing.

The Euro Ceramic 600mm basin and half pedestal will make a subtle difference to any bathroom look. It features a single tap hole and built in overflow. Manufactured from high grade vitreous china and finished in Alpine White, it’s durable surface will look good for years to come.

Pan Details

• Height: 420mm
• Width: 374mm
• Projection: 540mm
• Brand: Grohe
• Range: Euro Ceramic
• Type: Wall hung WC pan
• Material: Vitreous china
• Colour: Alpine white finish
• Horizontal outlet
• Triple Vortex
• Easy-clean rimless technology
• Supplied with WC seat with quick release action and Soft Close feature

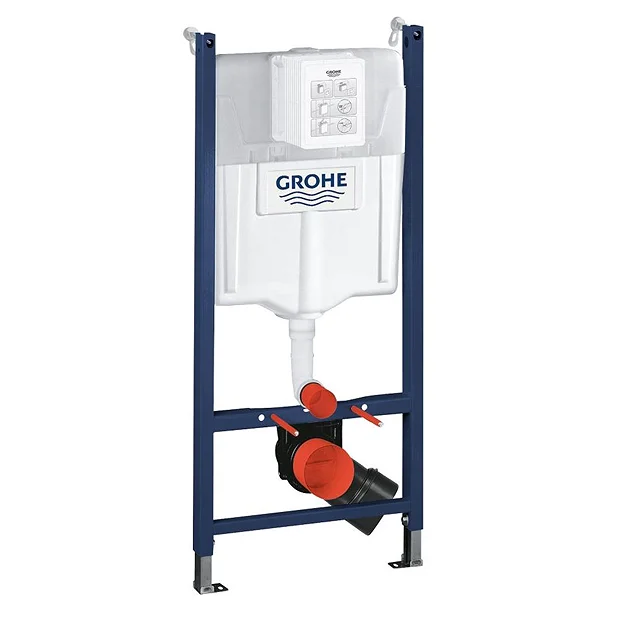

Frame Details

• Height: 1135mm
• Width: 500mm
• Brand: Grohe
• Steel frame for dry lining fixed object connections
• Fastening material with quick adjustment and height safety device
• 2 WC holding bolts
• Ceramic fixing Screw spacing 180/230 mm
• Drain elbow Ø 90 mm
• depth adjustable
• reducer Ø 90/110 mm
• inlet and outlet
• cistern GD 2, 6-9l
• factory setting 6l and 3l
• pneumatic drain valve with two functions:
• Set or start & stop
• water connection from left / right / rear or top Faucet group

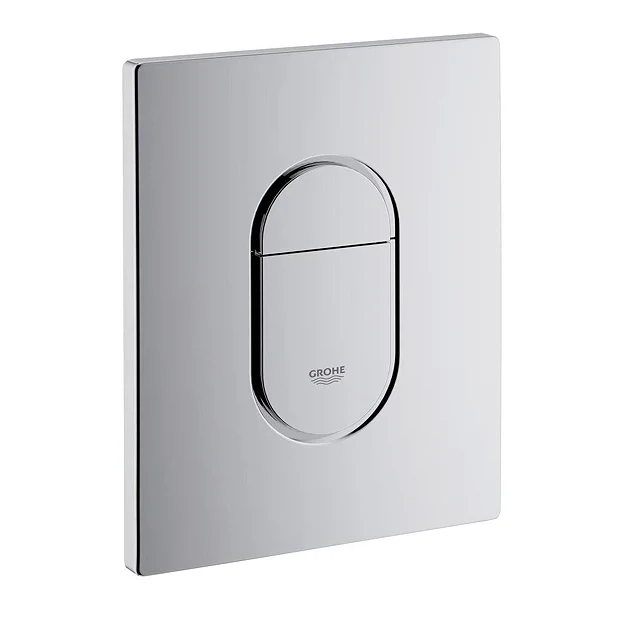

Flush Plate Details

• Width: 156mm
• Height: 197mm
• Depth: 10mm
• Brand: Grohe
• Range: Arena
• Type: WC Wall Flush Plate
• Finish: Chrome
• Material: ABS
• For dual flush or start & stop actuation
• Easy to clean thanks to the GROHE StarLight® chrome coating

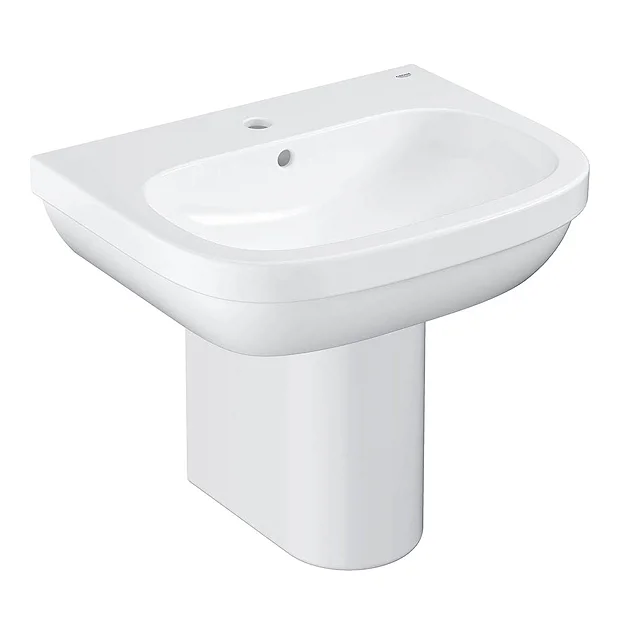

Basin + Half Pedestal Details

• Brand: Grohe
• Dimensions: (W)595 x (H)449 x (D)482mm approx.
• Colour: Alpine White
• Material: Vitreous China
• Type; Wall hung
• Includes half pedestal
• Single tap hole
• With overflow
• Wall fixings not included

Guarantee: 5 Year

Picture for illustrative purposes only

Please note: Tap and waste not included.

All measurements are approximate

Comprises

(1) Grohe Rimless Euro Ceramic Triple Vortex Flush WC
(1) Grohe Soft close and quick release seat
(1) Grohe Arena Flush plate (vertical and horizontal positioning)
(1) Grohe Solido Frame 1.13m / 3/6L Cistern
(1) Grohe Wall brackets and noise protection included
(1) Grohe Euro Ceramic 1TH Wall Hung Basin
(1) Grohe Euro Ceramic Semi Pedestal
