Grohe Solido Bau/Skate COMPLETE Wall Hung Bathroom Suite

Grohe Solido Bau/Skate COMPLETE Wall Hung Bathroom Suite (Wall Hung Rimless Pan, Alpine White Flush Plate, Concealed Cistern, Frame, 600mm Basin, Start Flow Tap + Fittings)

The Solido Bau complete wall hung suite is perfect for bringing great style to any modern bathroom setting. Without any compromise on style and good looks the wall hung option provides a bathroom design solution delivering a completely clear and open floor area. Package includes everything you need to give your bathroom a fresh new look!

The Solido Bau/Skate WC package consists of a support frame and cistern, dual flush plate, wall hung pan and soft close seat. The steel support frame gives you the freedom to design your ultimate bathroom by providing a secure and quick method of installing WCs. Each frame comes pre-assembled with sanitary ware fixings and is subject to stringent testing.

The Bau Ceramic basin package consists of wall hung basin, tap and waste, tubular p-trap, shut-off valves and fixing kit. The basin is manufactured from high grade vitreous china and finished in Alpine White. The stylish basin tap is supplied with an integrated pop-up waste and features GROHE EcoJoy® water saving function.

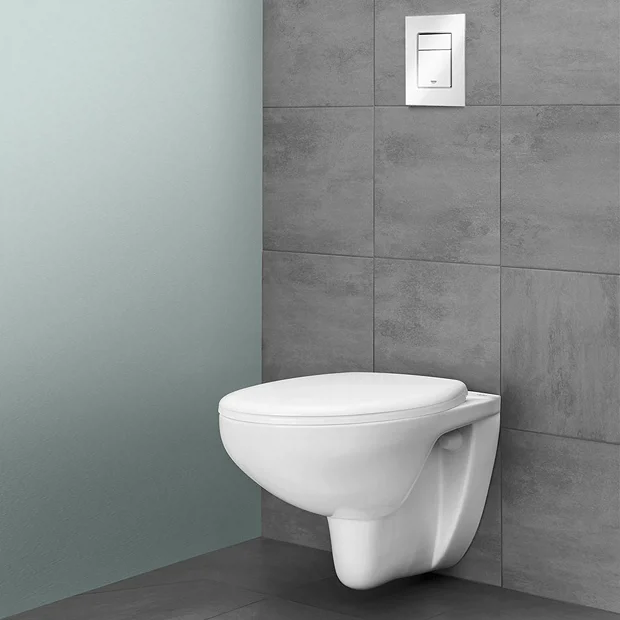

Pan Details

• Height: 410mm
• Width: 304 / 368mm
• Projection: 531mm
• Brand: Grohe
• Range: Bau Ceramic
• Type: Wall hung WC pan
• Material: Vitreous china
• Colour: White
• Easy-clean rimless technology
• Supplied with WC seat with quick release action and Soft Close feature

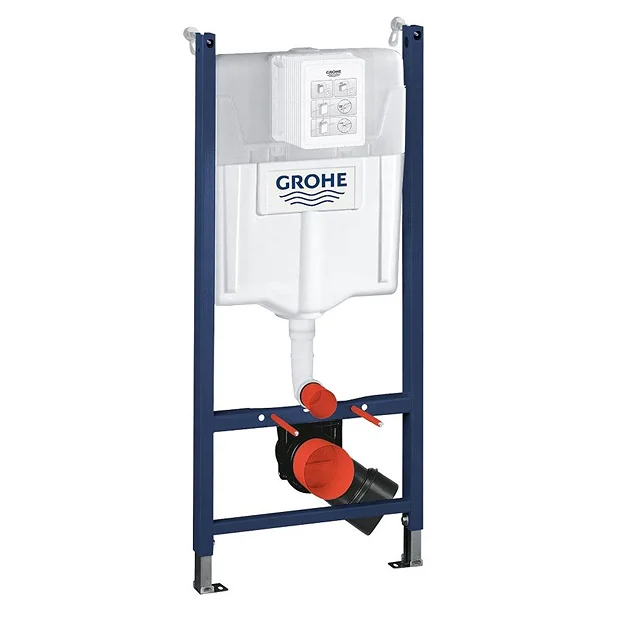

Frame Details

• Height: 1135mm
• Width: 500mm
• Brand: Grohe
• Steel frame for dry lining fixed object connections
• Fastening material with quick adjustment and height safety device
• 2 WC holding bolts
• Ceramic fixing Screw spacing 180/230 mm
• Drain elbow Ø 90 mm
• depth adjustable
• reducer Ø 90/110 mm
• inlet and outlet
• cistern GD 2, 6-9l
• factory setting 6l and 3l
• pneumatic drain valve with two functions:
• Set or start & stop
• water connection from left / right / rear or top Faucet group

Alpine White Flush Plate Details

• Width: 156mm
• Height: 197mm
• Depth: 10mm
• Brand: Grohe
• Range: Skate Cosmopolitan
• Type: WC Wall Flush Plate
• Colour/Finish: Alpine White
• Material: ABS
• For dual flush or start & stop actuation
• For vertical and horizontal installation
• For pneumatic drop valve AV1

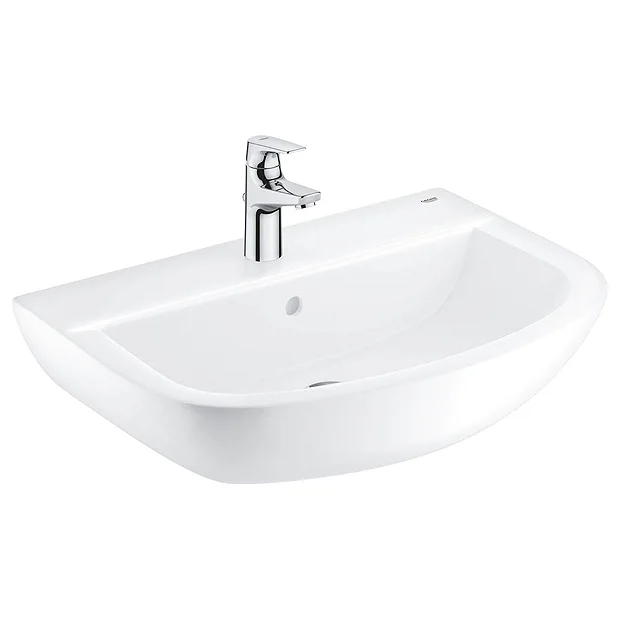

Basin Details

• Dimensions: (W)609 x (H)152 x (D)442mm approx.
• Colour: Alpine White
• Material: Vitreous China
• Wall hung
• Single tap hole
• With overflow

Tap Details

• Finish: Chrome
• GROHE Longlife 28mm ceramic cartridge
• GROHE StarLight chrome finish
• GROHE EcoJoy mousseur 5.7 l/min
• Rapid installation system
• Pop-up waste set 1 1/4″
• Flexible connection hoses

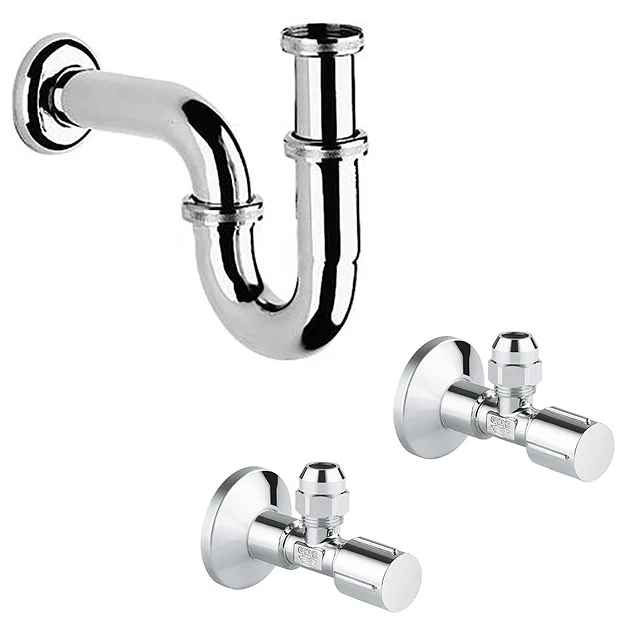

P-Trap Details

• For basins
• Wall connection
• Escutcheon
• GROHE StarLight chrome finish

Shut-Off Valve Details

• Self-sealing connection thread
• Wall connection 1/2″
• Outlet 3/8″
• With length compensation
• With compression nut Ø 10mm
• Water protected spindle shutoff, brass,
• With grease chamber and double o-ring sealing
• Long connecting shaft
• Ergonomic metal handle
• Marking: Neutral
• Metal push-on escutcheon Ø 55mm
• GROHE StarLight finish

Guarantee: 5 Year

Picture for illustrative purposes only

All measurements are approximate

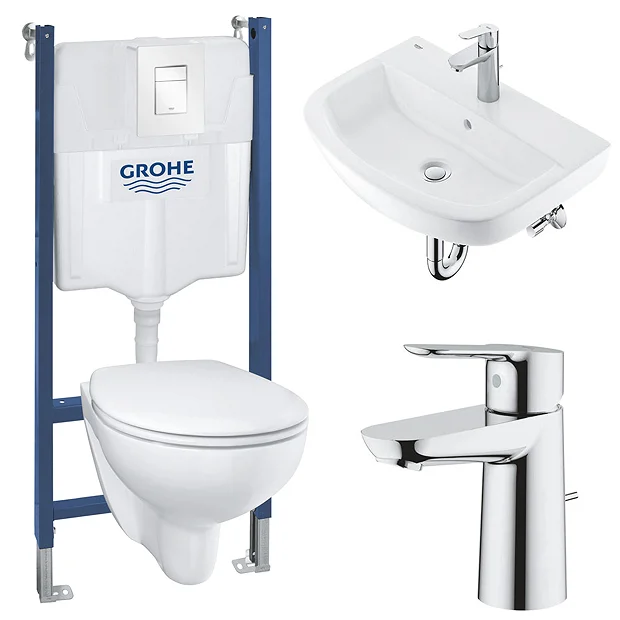

Comprises

(1) Bau Rimless Ceramic WC
(1) Soft close and quick release seat
(1) Even flush plate (Skate Cosmopolitan) – Alpine White
(1) Solido Frame 1.13m / 3/6L Cistern
(1) Wall brackets and noise protection included
(1) Grohe Bau Ceramic 1TH Basin
(1) Basin Mixer + Pop-Up Waste
(1) Chrome P-Trap
(2) Angled Shut-Off Valve
(1) Wall Fixing Kit
